Sewage Pump WQMS

Models Manufactured:

WQMS / WQMF/ WQMN / WQD ( WQWPE) WITH HP RATED FROM 1 HP TO & 75 HP

Our Submersible Sewage Pumps may handle small solids which are best suited for raw sewage / slurry These Pumps are specifically designed for handling sewage having solids, stingy materials and yet gives best and high efficient pumping . The Impellers are designed in closed configuration having wide passages to allow sewage water with solids easily

SPECIAL FEATURES OF WQMS SERIES PUMPS

As a standard the pumps are offered in all CI Gr FG 260. Pumps can be offered in CI alloys, Stainless steel of in Duplex materials

COOLING Integral cast cooling fins on motor casing with large cooling area ensure efficient heat dissipation and low temperature rise. Shrink fitted stators and short shaft contribute to efficient cooling.

Built in On/Off Bimetallic switches on motor winding for motor protection

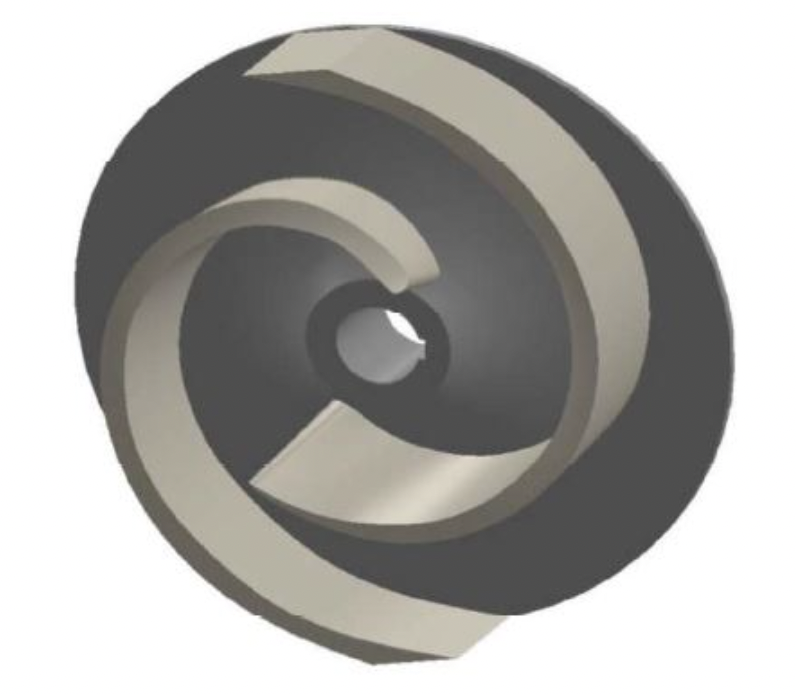

Impeller Type : Single Channel Closed Type & Single/two vane semi open Type

INSTALLATION VERSION :

Modular Designs
Choke Free Pumps
Custom built designs
Range of protection & control instrumentation

Broad Range :

Delivery size up to 600mm
Capacity up to 10000 m3/hr
(max.)
Head up to 70 m (max.)
Max solid size upto 200 mm

Application

Sewage Transportations , Sewage Treatments & Drainage
Industrial waste , Flood water, Mud/ water having solids, sand and waste
Construction sites
Waste water /Raw water transportation
Dredger application

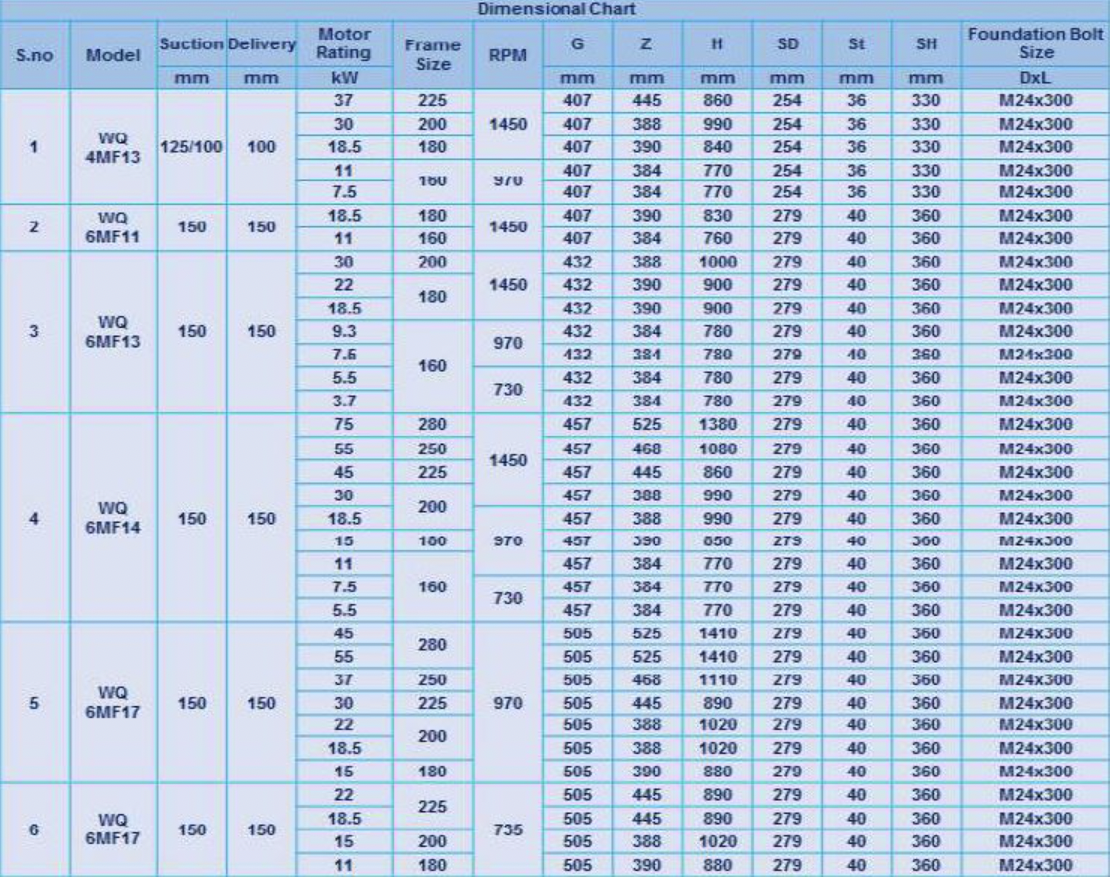

WQMS Flow Head Range:

Flow : 5 m3/hr to 500M3/hr , Head : 60 Mtrs
Speed ; 2900, 1450 Rpm
solids size handling : From 16 mm to 75mm

Sealing by TC vs TC faces double mechanical seal in tandem arrangement

Small size pumps are with single vane /Two vanes semi open type impellers having better control on flow / performance . Are fitted with wear plate

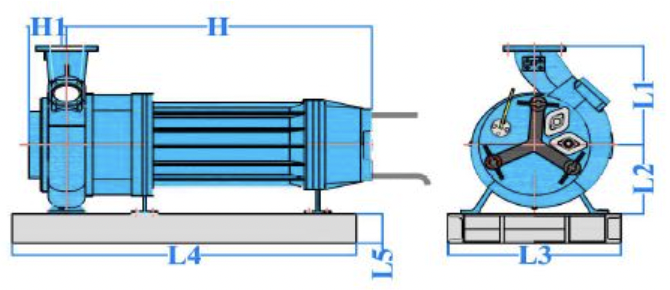

INSTALLATION VERSION :

All the pumps are supplied in Fixed Installation as well as and are supplied both with Fixed Installation as wells . Portable version (Pump can be kept in the sump as it is and rest on its base.

STANDARD SCOPE

Pump fitted with double mechanical seal , PVC Power & control cable of 15Mtr length and with Base or Duck foot bend( auto coupling ) as the case may be. We provide complete pumping solution based on the site conditions/requirement and our Pumps can be supplied with special arrangement to tackle those conditions

Pumps with agitator for removal of sand /muds along with pumping liquid and does not allow the solids to
settle below the suction zone . This can be further improved by provided Water jet arrangement
Pumps with Cutter arrangement to handle bigger size of soft solids , rubberised contents /cloths etc.
Pumps with Shower arrangement and with Water jacketing arranging for the application where the Pump
may not be fully immersed in pumping fluid.

Most of the pumps are of Single Channel type Impellers hydraulically balanced with improved flow pattern best suited to handle untreated sewage . This pumps are with case wear rings

The rotor shaft is carried in two ball bearings. The lower bearing is a double row angular contact bearing capable of carrying high thrust and radial loads The upper bearing is a deep groove single row ball bearing. The bearings are filled with high temperature grease containing special anti-corrosive additive with no maintenance required for life.

Durability and Reliability

Experience :

Our vast fluid handling knowledge and dedication to research and development leads to technological advances and continuous improvement. That’s why our pumps are at work in more than a hundred thousand installations worldwide. They have proven, by far, to be the best and most reliable choice for submersible installations.

Screened Sewage
Raw Sewage
Contaminated effluents
Industrial waste water

Storm water
Trench and tunnel water
Drain Water, Mine water
Raw Water Intake

Design

Designed and Engineered For Longer Life

Wet Sump Installation

Low costs for lift station and assembly
Low space requirement for pumps
Service-friendly installation and removal thanks to suspension device
Motor is cooled by the pumped medium

Broad performance range to suit your application

Flexible and modular design

WPIL technology enables you to tailor the hydraulics to meet the requirements of virtually any application. These pumps with single or two vane non clog impellers are available in both horizontal and vertical models with a variety of mounting arrangements and nozzle positions to suit most piping configurations without the need for special or costly modifications. Choose the cast iron or stainless steel version for typical wastewater applications. Duplex/Super Duplex should be used in abrasive applications and waters that cold cause erosion corrosion due to high oxygen content. Modular designs lead to lower spare parts inventory, keeping the overall service
costs low.

Broad Range :

Delivery size up to 600mm
Capacity up to 10000 m3/hr (max.)
Head up to 70 m (max.)
Max solid size up to 200 mm

Efficiency

Optimized efficiency and maximum solid handling capabilities are built into every pump to provide a wide range of efficient operation and reduce power consumption. Adjustable wearing ring clearance assures continued high efficiency even after years of service.
Replaceable hardened chrome steel wearing rings are furnished on the impeller and suction head as standard equipment to extend the life of the pump.

Motor

Engineered submersible motor designs are as per IEC and NEMA MGI with designs engineered according to your specifications and continual improvements with in-house R&D.
The motor is submersible AC squirrel cage, induction and dry type with -68 enclosed fitted with heavy duty antifriction bearings and mechanical sealing to ensure high depth submergence condition. Prepared for variable speed operation, all motors are capable of fully utilizing the available power. For an even higher over all efficiency, premium efficiency IE 3 motors are available.

Mechanical Seals

Double mechanical seals in oil bath with seal surfaces in silicon carbide extend the life of the pump. These low-friction seals withstand thousands of hours of high pressure operation under extreme conditions without cracking, seizing up or showing signs of unacceptable wear.

Ease of maintenance

Engineered submersible motor designs are as per IEC and NEMA MGI with designs engineered according to your specifications and continual improvements with in-house R&D. The motor is submersible AC squirrel cage, induction and dry type with -68 enclosed fitted with heavy duty antifriction bearings and mechanical sealing to ensure high depth submergence condition. Prepared for variable speed operation, all motors are capable of fully utilizing the available power. For an even higher over all efficiency, premium efficiency IE 3 motors are available.

Vibration-free operation

Heavy and rigid shafts with high L10 heavy duty bearings give vibration free operation.

Dry-running ability

Motor designed for 50’c dry running for reliable operation under extreme dry conditions.

Effortless starting

Motor designed for 50’c dry running for reliable operation under extreme dry conditions.

Sensors

Built-in contactors and thermal sensors in the stator windings protects the motor from overheating

Choke free

WPIL sewage pumps with Plus solid handling passage impellers provide state of the art wastewater solids handling.

Optional features

Pumps with cutter, agitator, dredger and jet arrangements at suction can be provided to suit applications.
