Submersible Pumps

Raw Water Intake Pump

from 50 LPM to 16000 LPM and discharge heads from 2 Mtrs to 140 Mtrs. The pumps are equipped with double mechanical seals and are of light weight and are available in different material of construction such as Aluminum / Stainless Steel and higher grade of Steel with provisions of built in monitoring features such as thermal switches, seal probe and also inbuilt contactors. The pumps are being utilized at construction sites, mines, power stations, steel plants, aqua culture industry and marine industry.

DEWATERING PUMP

Flow upto -960M3/hr
Head : 90M /120M
Diffusor Design
Light weight
Portable type
1HP to 120 HP

Pumps

SEWAGE PUMP WQMS

Flow up to -480 M3/hr
Head : 68M
Volute Design
Single Channel Type
Impeller
1HP to 40HP

Operating data

Fluids Handled

WLN/WLNV pumps are very versatile and can be used for the following fluids:

• River water, lake and groundwater
• Brackish water, sea water
• Storm and drainage water
• Service water
• Fire-fighting water
• Cooling and condensate water
• Drinking water

SLUDGE PUMP

Flow upto -132M3/hr
Head :40 M
Volute Design
Vortex Impeller
Totally Non Clog
Pumps

Basic Features of Drainage Pump

  • Lightweight Aluminum or all Stainless steel ( 304 / 316 ) options with Corrosion / Abrasion
    resistance stainless steel wet ends.

  • Built in On / Off bimetallic switches for motor protection.

  • Tungsten Carbide Vs. Tungsten Carbide double mechanical seals wholly enclosed in a
    pressure compensated oil bag.

  • Optional sacrificial Zink anode for maximum life in a saline fluid environment

  • Continuous rated Class ( Safe to operate up to 180 0C temperature range ), Triple dipped and epoxy coated heavy duty motors available in any Voltage / Frequency Combination.

  • Pumps are fitted with Bearings filled with high temp. grease mixed with anti corrosion
    additive with no maintenance required.

  • Pumps are with dry motor design to ensure maximum efficiency.

  • Aluminum part undergoes following processes.

    • Cromotising for prevention of oxidation

    • Epoxy powder coating followed by baking

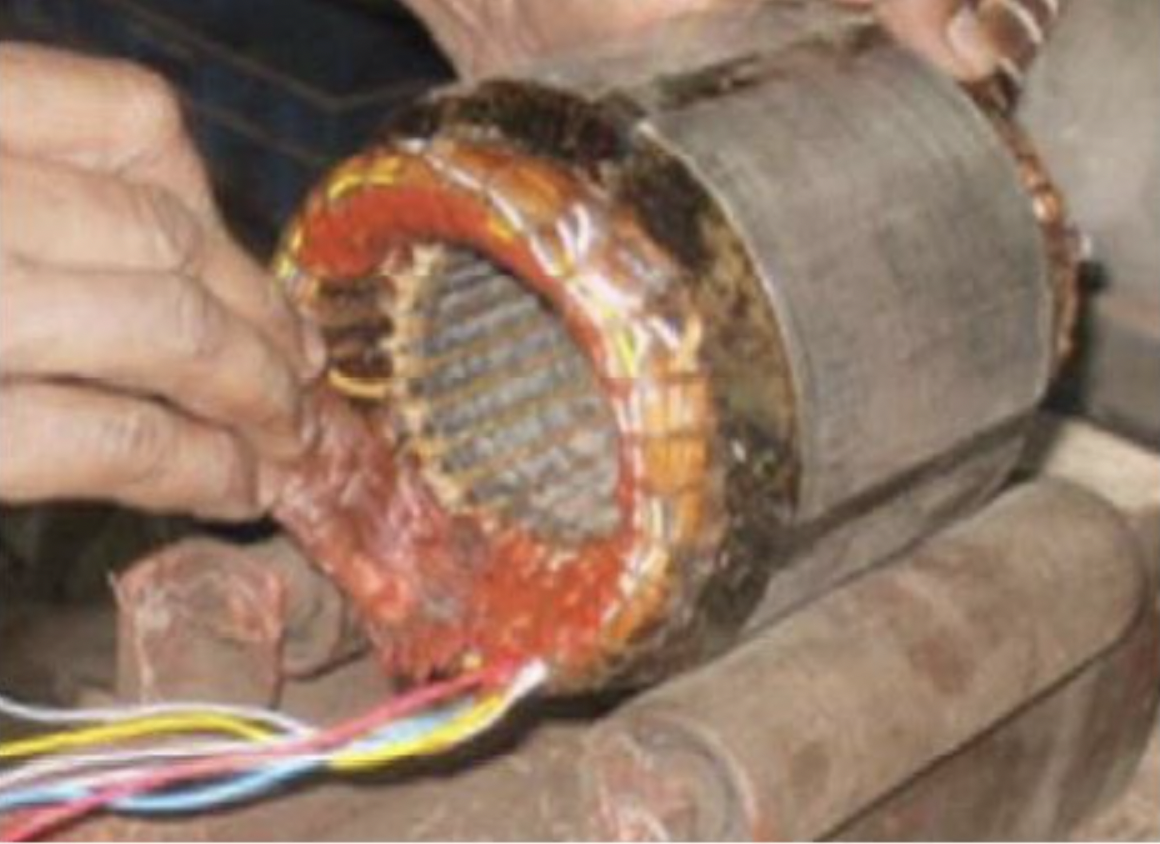

  • Motors windings are applied with 3 coats of Varnish . There after end windings are
    applied with epoxy coating to arrive insulation thickness to 0.5mm (approx..).

  • Our Motor ratings are based on the maximum power of the impeller at closed to full open
    conditions plus the margins for eventualities solid contents.

  • Due to the modular design, the same parts can be used for different pumps, which lowers
    the overall service costs. An adjustable diffuser ensures proper clearance throughout the impeller lifetime. By removing the top cover of the pump, the electrical junction area can
    easily be checked.

SWIMMING POOL CLEANER

Available in 1.5 ( 1 & 3 Phase ) & 2 HP Version
Discharge : 400 LPM & 600 LPM
Speed : 2900 RPM
Pump Performance are equivalent to WQM100 & M120NM

1.) Depending on the material and size
2.) Standard design up to max. 80 ° C [176 ° F]
